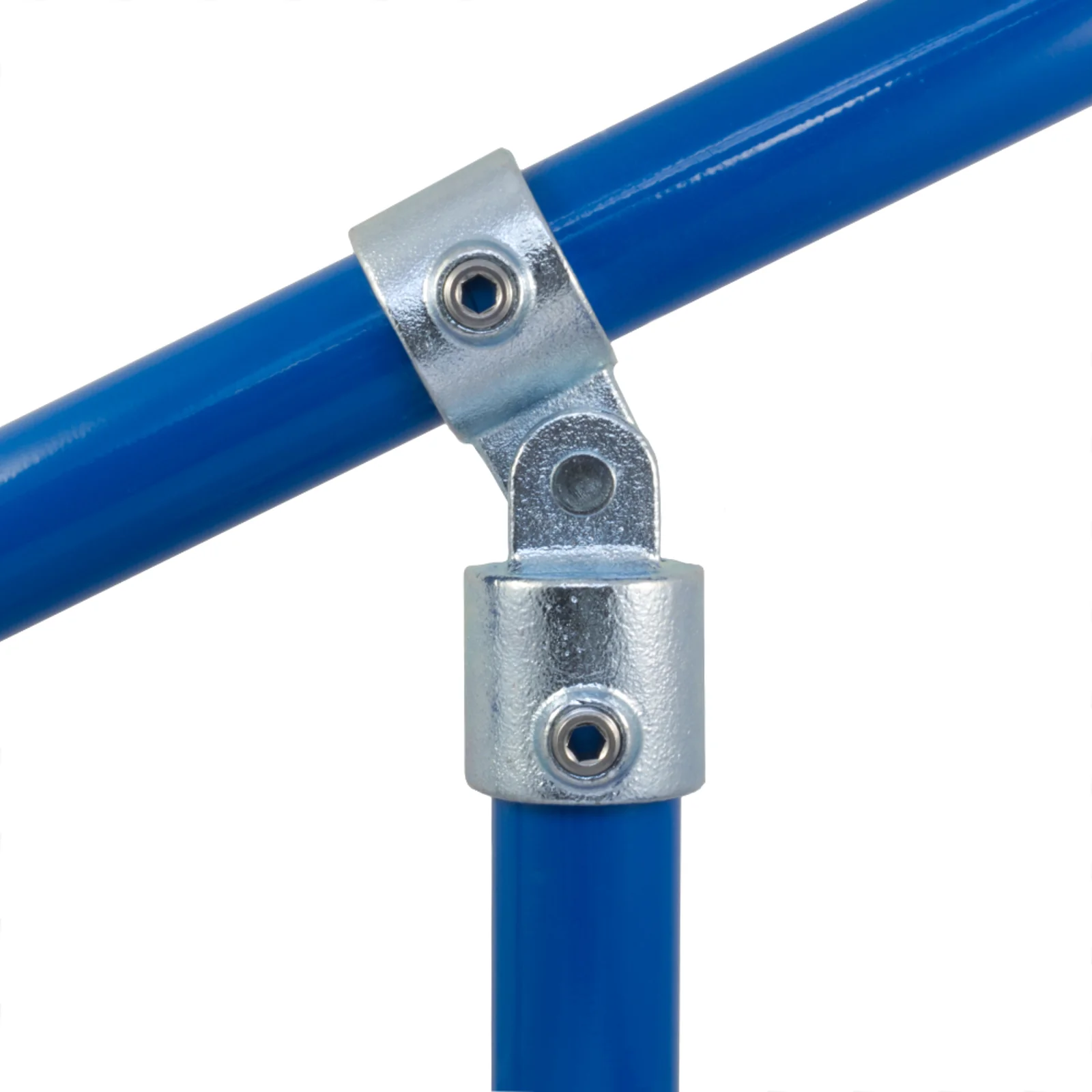

This versatile swivel fitting is ideal for challenging applications where adjustable angle fittings cannot accommodate the required angles. The through tube (sloping in the photo) cannot be joined within the fitting. The assembly is riveted together, but items can be supplied separately as 173M and 173F.

Warning: this fitting is not intended to withstand lateral loading. Building an entire structure using only swivel fittings would result in instability.

Qty: 1
Finish: Galvanised
Brand: Interclamp®
Interclamp code: 173

Sizes:
• A27 | For 27mm Galvanised Pipe | 'a' 61mm | 'b' 106mm | Weight: 0.49kg
• B34 | For 34mm Galvanised Pipe | 'a' 61mm | 'b' 104.5mm | Weight: 0.64kg
• C42 | For 42mm Galvanised Pipe | 'a' 69mm | 'b' 117mm | Weight: 0.79kg
• D48 | For 48mm Galvanised Pipe | 'a' 77mm | 'b' 130mm | Weight: 0.89kg
• E60 | For 60mm Galvanised Pipe | 'a' 89mm | 'b' 152mm | Weight: 1.33kg

'a', 'b' - refer to diagram
